ALPINE BBX-F1200 - 4-kanálový zesilovač, 600 W max
Specifikace:
VÝROBCE |
ALPINE |
POČET KANÁLŮ |
4 |
VÝKON MAXIMÁLNÍ (W) |
600 |
VÝKON RMS (W) |
4 x 70 ( 2 x 130 ) |
FREKVENČNÍ ROZSAH (Hz) |
5 - 50000 |
PÁSMOVÁ PROPUST |
ANO |
VSTUPNÍ CITLIVOST (V) |
0,2 - 8 |
ROZMĚRY V MM ( Š x V x H ) |
330 X 52 X 240 |
ODKAZ NA STRÁNKY VÝROBCE |
ZDE |
Install

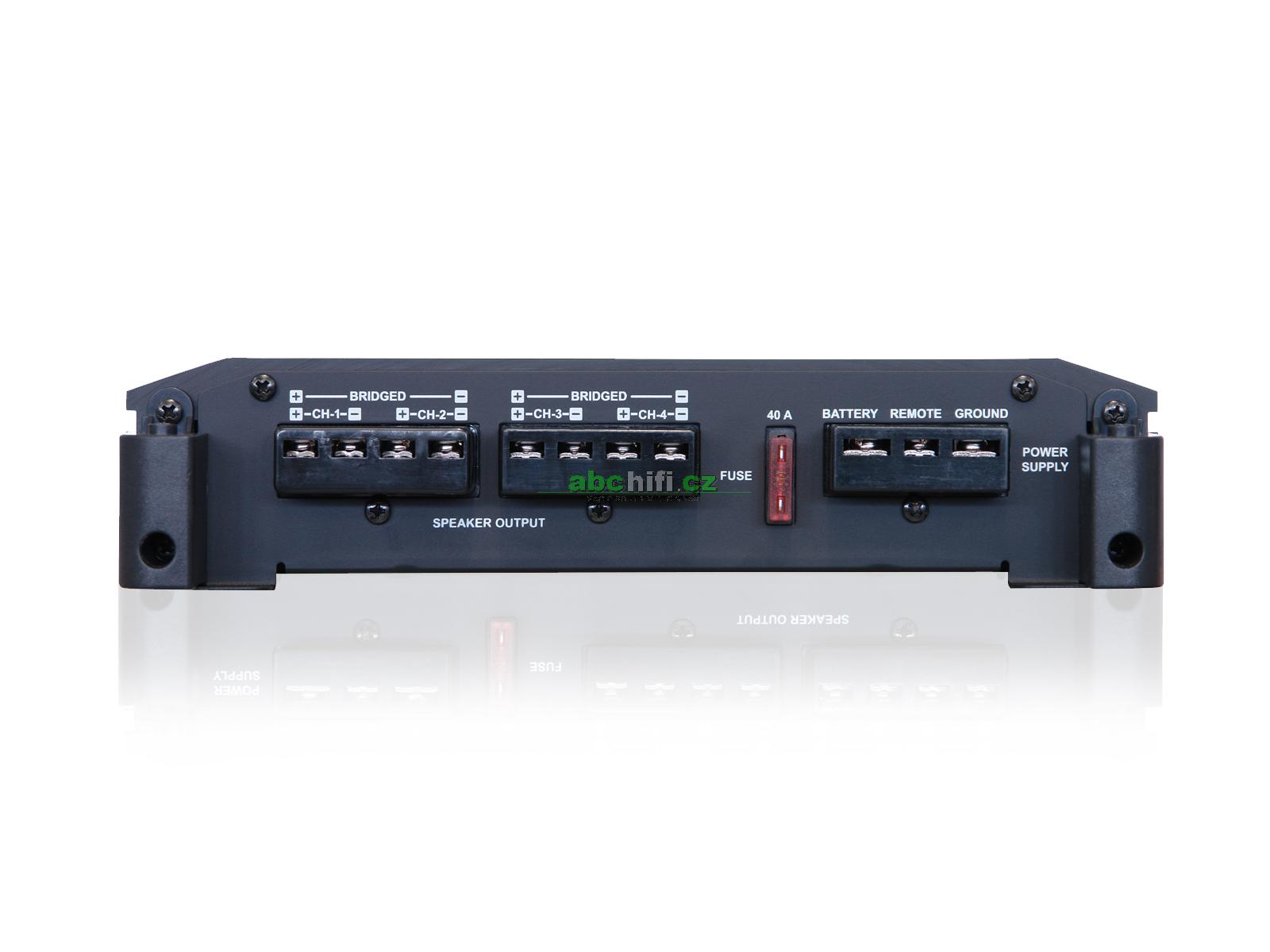

- Terminal Layout: Two-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
General
- Amplifier Type: Class-A/B
- Channel Design: 4/3/2 Channel
- Thermal Control: Thermal Management Control
- Power Supply: DC-DC PWM Power Supply
- Power Supply Design: MOSFET Power
- Current Protection: Over-Current, Over-Voltage and Thermal Protection
- Crossover: Variable Low-Pass / High-Pass
- Green/red status LED

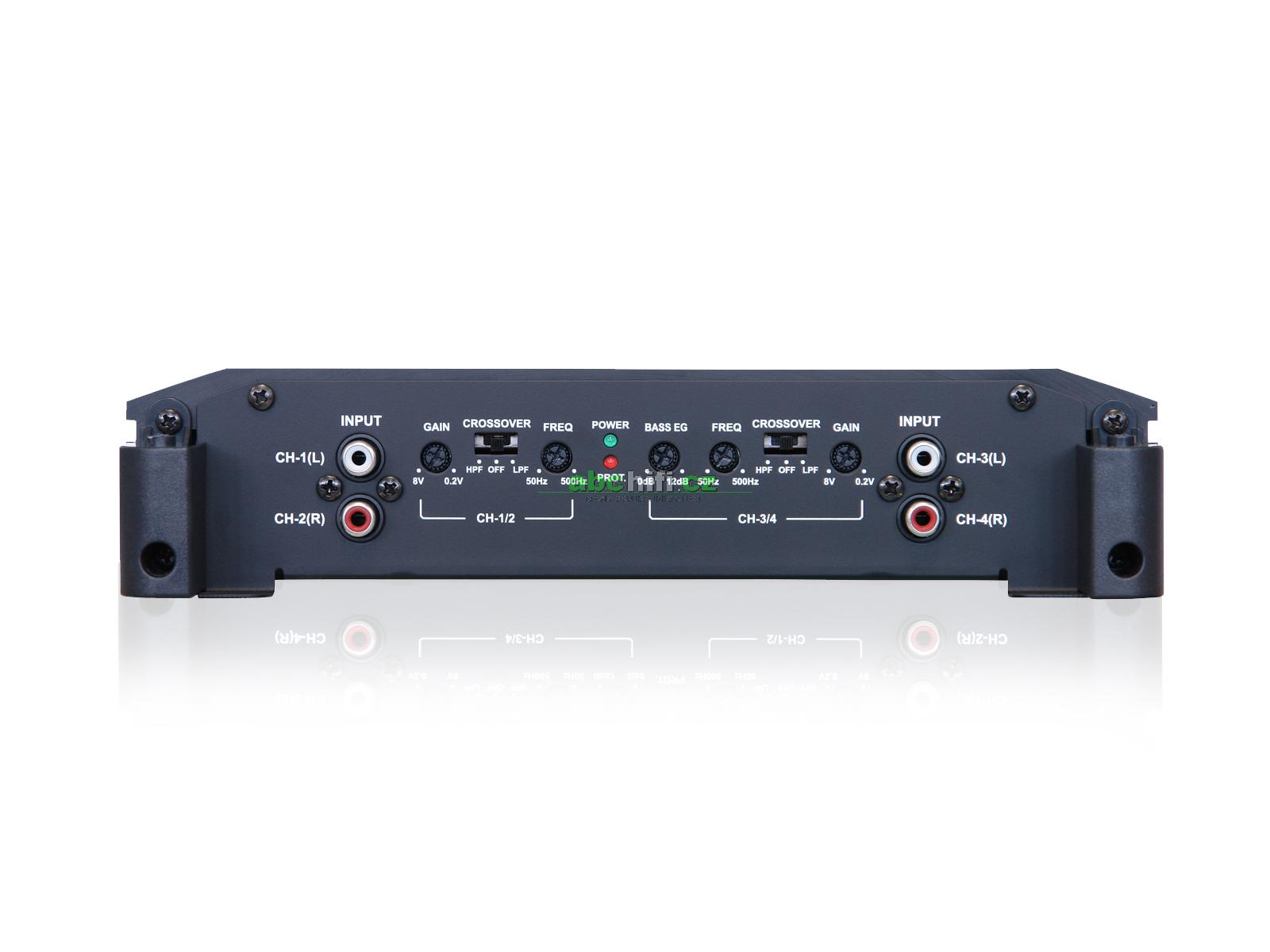

- 2 pair RCA pre-inputs
Max Power Output Ratings
RMS Power Ratings
- Per Channel into 4ohms (≤1%THD+N): 4 x 50W
- Per Channel into 2ohms (≤1%THD+N): 4 x 70W
- Bridged into 4ohms (≤1%THD+N): 2 x 130W
Sound Tuning
- Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
1/2 Ch: LP/HP: 50Hz – 500Hz
3/4 Ch: LP/HP: 50Hz – 500Hz
- EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain 0dB to +12dB (3/4 Ch only)
Dimensions
- Footprint: 330 mm x 52 mm x 240 mm
General
- Power Requirements: 14.4 V DC (11 V to 16 V)
- Input Sensitivity: 0.2 - 8.0 V
- Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
- Speaker Impedance: 4 or 2 Ω
- Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
- Weight: 2.7 Kg
